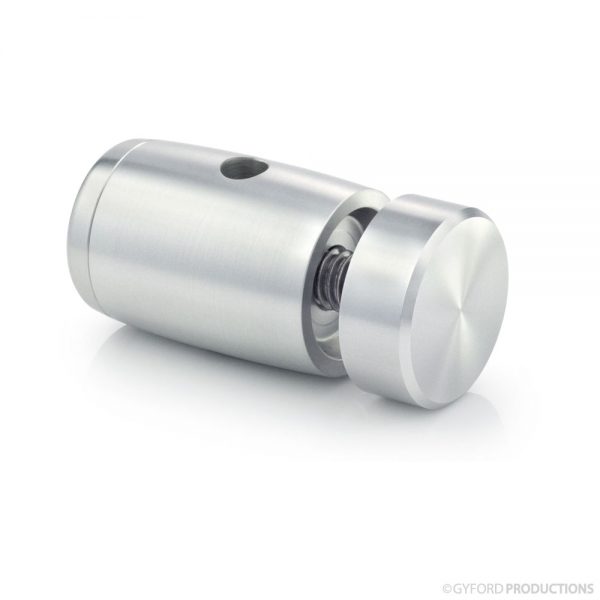

EZ-A55R.jpg EZ-A55R.jpg

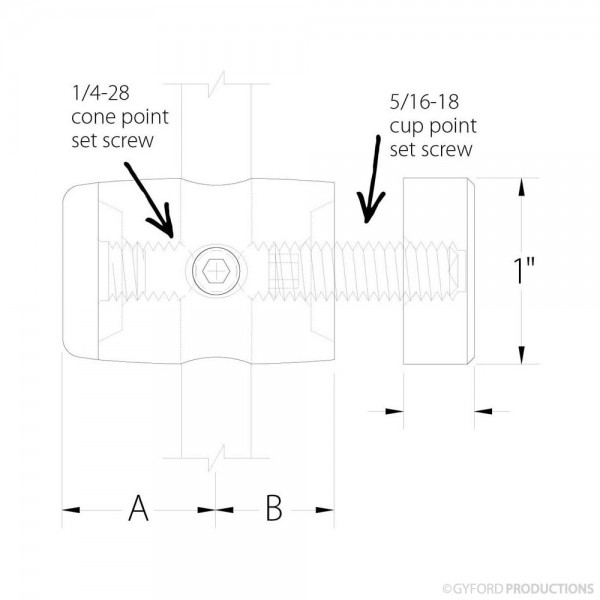

EZ-A55R-LINE.jpg Line Drawing EZ-A55R-LINE.jpg Line Drawing

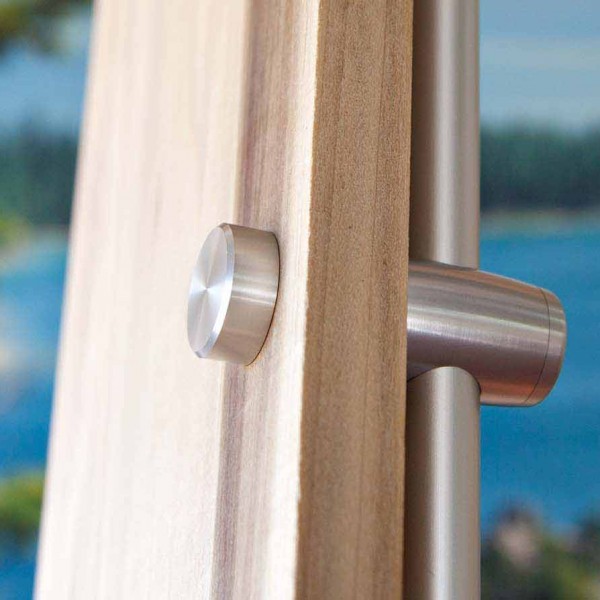

ez-a55r-app.jpg Application ez-a55r-app.jpg Application

EZ 1/4″ Rod StandOff with Cap

The EZ 1/4″ Rod StandOff with Cap is designed to attach panels in front of 1/4″ rod. The rod connector uses a SO-CAP9 with a flat point set screw to secure panels and will require a 3/8″ hole in your material. Specify material thickness for stud length.

SKU: EZ-A55R. Categories: , , .

Product Specifications

SKU:
EZ-A55R
Material:
Machined Aluminum
Use With:
1/4" rod

Included Hardware

comes with stud up to 1-1/2" long specify material thickness for stud length
EZ-C-250, EZ-RCR, EZ-CRCAP, SO-CAP9, HD-FPT5

Recommended Applications
