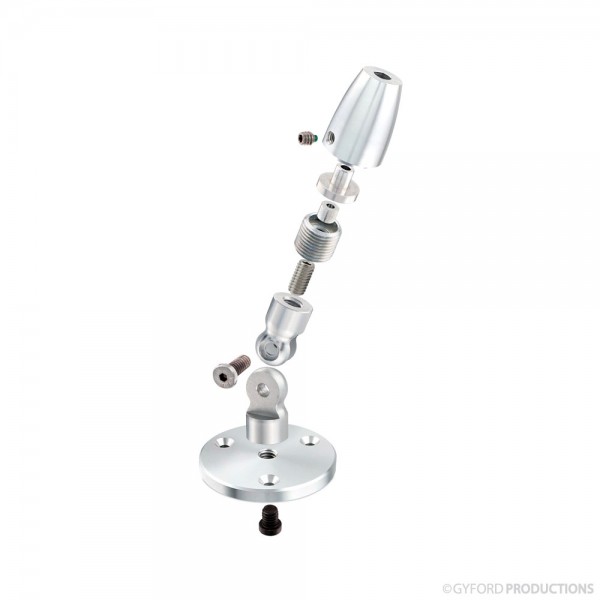

EZ-AH20PO.jpg EZ-AH20PO.jpg

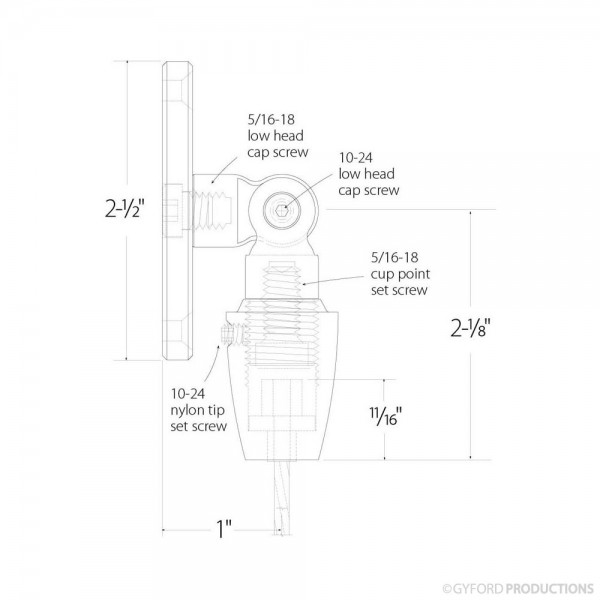

EZ-AH20PO-LINE.jpg Line Drawing EZ-AH20PO-LINE.jpg Line Drawing

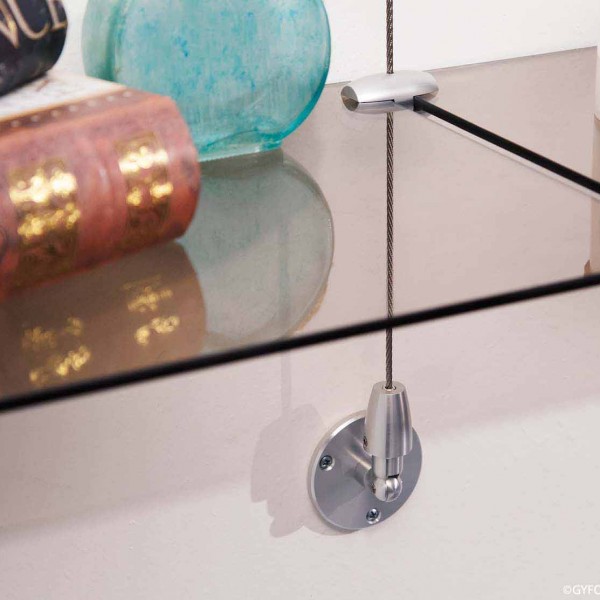

ez-ah20po-app ez-ah20po-app

EZ 1/8″ Wire Angled Wall Turnbuckle (Parts Only)

The EZ 1/8″ Wire Angled Wire Wall Turnbuckle (Parts Only) is an unassembled angled mount for 1/8″ wire. The hinge of this part can be se to your desired angle and the turnbuckle applies tension to the wire. This is designed to be the bottom connection of an application and includes a 2-1/2″ base plate. NOTE: For parts only hardware, the customer is responsible for swaging the wire.

SKU: EZ-AH20PO. Categories: , , .

Product Specifications

SKU:
EZ-AH20PO
(A) Diameter:
2-1/4"
(A) Length:
2-1/2"
Material:
Machined Aluminum
Use With:
EZ-WIRE-125
(B) Wall to Hinge:
1"
Wire/Rod Size:
1/8"

Included Hardware

(3) HD-PS2
HD-LHD65, EZ-AWMBL, EZ-HM, HD-LHD2, EZ-HF, HD-S16, EZ-TMS, EZ-AWT-125, HD-FPT2, EZ-TB, HD-NT1

Recommended Applications

use as the bottom connection for wall-to-wall or ceiling-to-wall 1/8" wire applications
