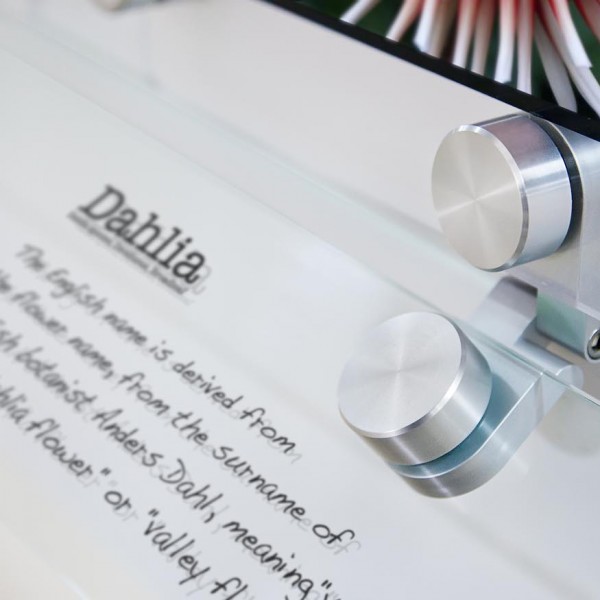

so-a1h-app.jpg Application so-a1h-app.jpg Application

Panel Hinge with Caps

Panel Hinge with Caps. Our Fixed Hinge and Cap combinations have lockable positioning and are available in two sizes. To ensure the correct stud length, specify panel thickness when ordering.

StandOff Panel Hinges hold two pieces of material at separate angles. They can be locked in place and fastened to your material with a cap or gripper. Once the hinges are fixed into the selected position, other StandOff components can be attached as needed. These hinges are an excellent solution for expanding the versatility of a design.

The hardware included: HD-STC1 or HD-STC5

Includes: (2) removable studs up to 1-1/2 long

Login or register now to see pricing or place an order.

Clear
Material Thickness *
Other Material Thickness

SKU: N/A. Categories: , .

Included Hardware

* Select Product Variation Above

Recommended Applications

* Select Product Variation Above
