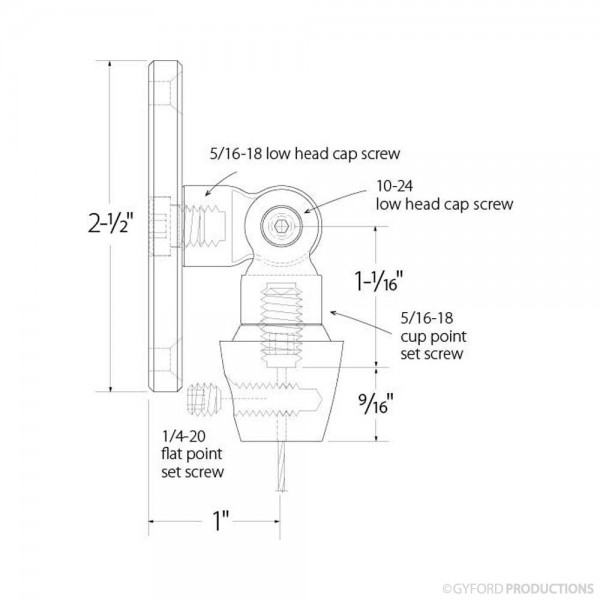

EZ-A19-LINE.jpg Line Drawing EZ-A19-LINE.jpg Line Drawing

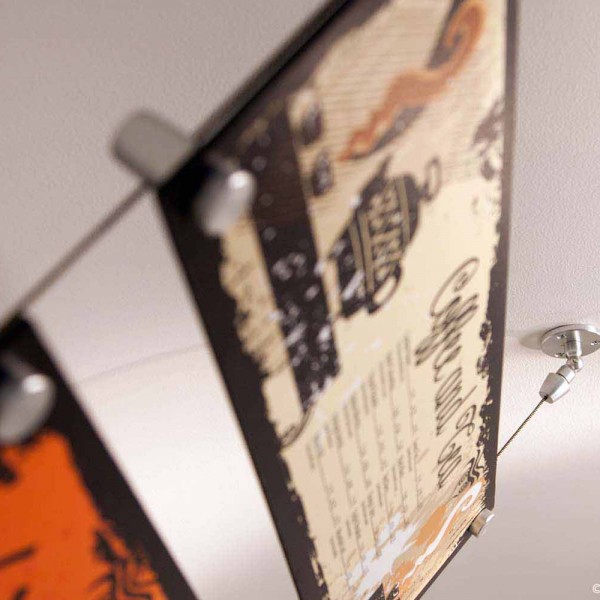

ez-a19-app.jpg Application ez-a19-app.jpg Application

EZ 1/8″ Wire Angled Wall Mount

The EZ 1/8″ Angled Wire Wall Mount for 1/8″ wire. The hinge allows a range of angles and can be secured in place. This mount is designed to be the top connection of a wire system and is mounted with a 2-1/2″ base plate.

SKU: EZ-A19. Categories: , , .

Product Specifications

SKU:
EZ-A19
(A) Diameter:
2-1/2"
Material:
Machined Aluminum
(B) Wall to Hinge:
1"

Included Hardware

(3) HD-PS2
HD-LHD65, EZ-2.5WMBL, EZ-HM, HD-LHD2, EZ-HF, HD-S16, EZ-WG-125, HD-FPT4

Recommended Applications

use with wall-to-wall or wall-to-floor 1/8" wire applications
