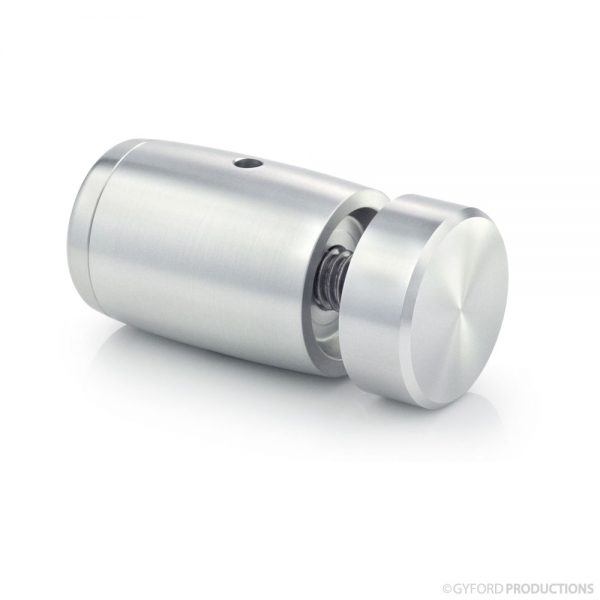

EZ-A50.jpg EZ-A50.jpg

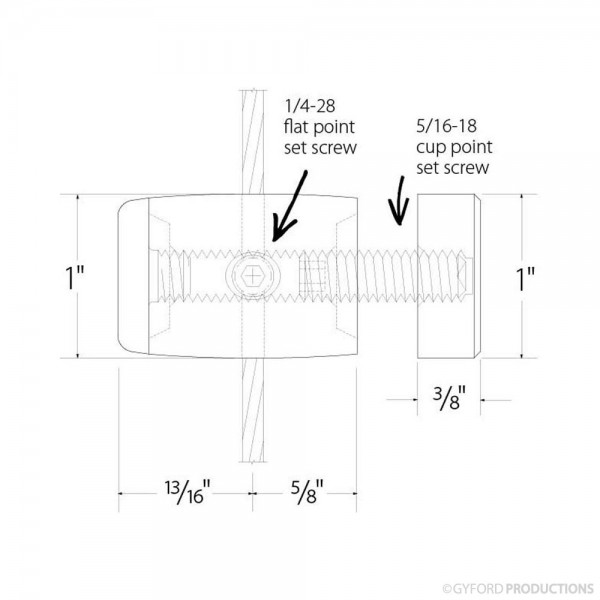

EZ-A50-LINE.jpg Line Drawing EZ-A50-LINE.jpg Line Drawing

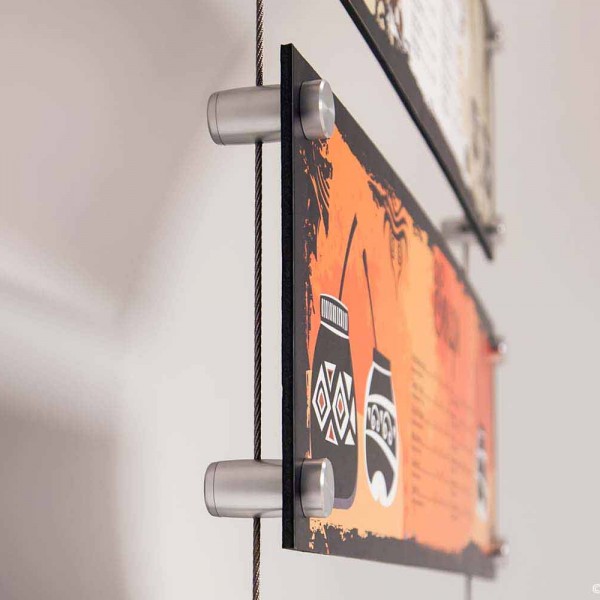

ez-a50-app.jpg Application ez-a50-app.jpg Application

EZ 1/8″ Wire Horizontal Connector with Cap

This connector for 1/8” wire utilizes a cap and stud to mount material in a vertical orientation.

Login or register now to see pricing or place an order.

SKU: EZ-A50. Categories: , , .

Product Specifications

SKU:
EZ-A50
(D) Cap Height:
1"
(E) Center Line to Slot:
5/8"
(A) Diameter:
1"
(B) End to Centerline:
11/16"
Material:
Machined Aluminum
Pre-Drill:
3/8"
Use With:
1/8" wire

Included Hardware

Comes with stud up to 1-1/2" long. Specify material thickness for stud length.
EZ-CRCAP, EZ-125C, HD-FPT9, SO-CAP9

Recommended Applications

* Select Product Variation Above
