Structurelite Square Profile Turnbuckle Cover

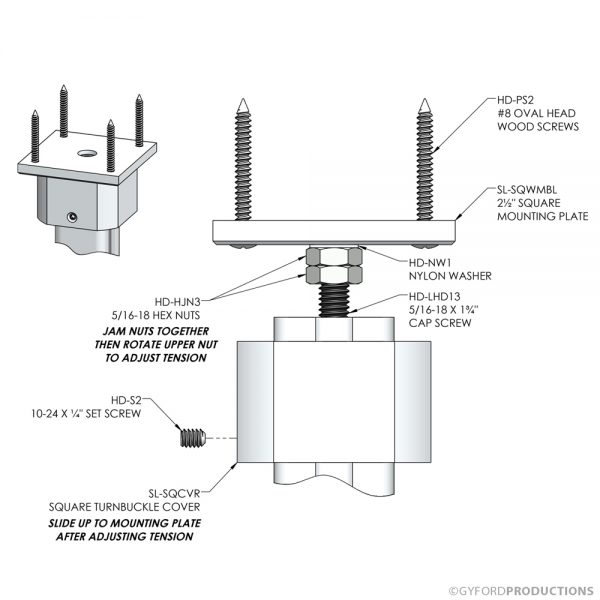

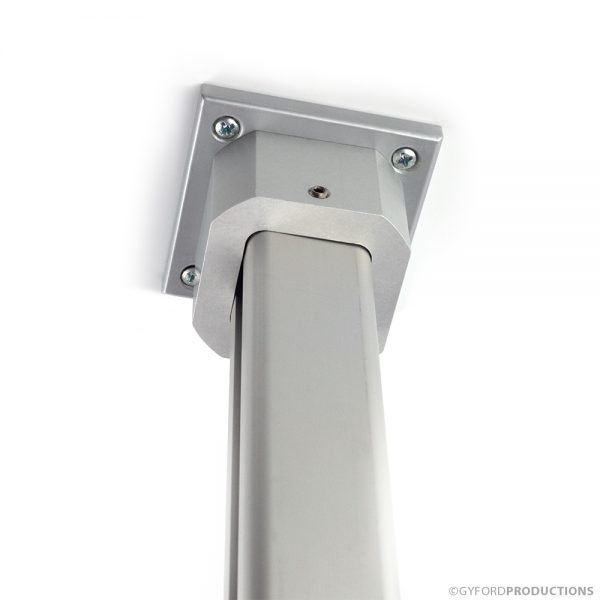

The Structurelite Square Profile Turnbuckle Cover (SL-ASQCVR) shrouds the turnbuckle assembly made by threading a 5/16 low head socket cap screw through a surface mounting plate, nylon washer, two nuts, and into the end of a 1.25” square StructureLite extrusion. Included with the shroud is a 10-24 cup point socket set screw used to secure the shroud to the extrusion. The components that make up the turnbuckle assembly are sold separately.

SKU: SL-ASQCVR. Categories: , .

Product Specifications

SKU:
SL-ASQCVR
(A) Diameter:
1-1/4"
Inside Dia.:
1-1/4''
Outside Dia.:
2''
(B) Overall Height:
1-1/4''
Type:
Assembly
Wall:
3/8''

Included Hardware

Recommended Applications

* Select Product Variation Above
