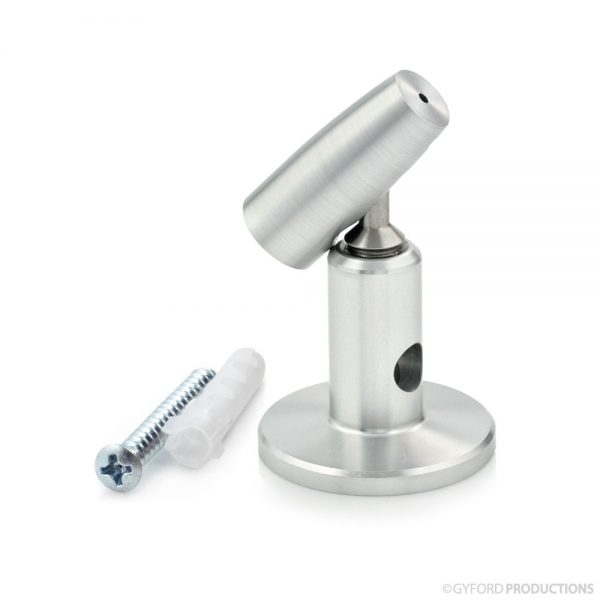

WL-A-42.jpg WL-A-42.jpg

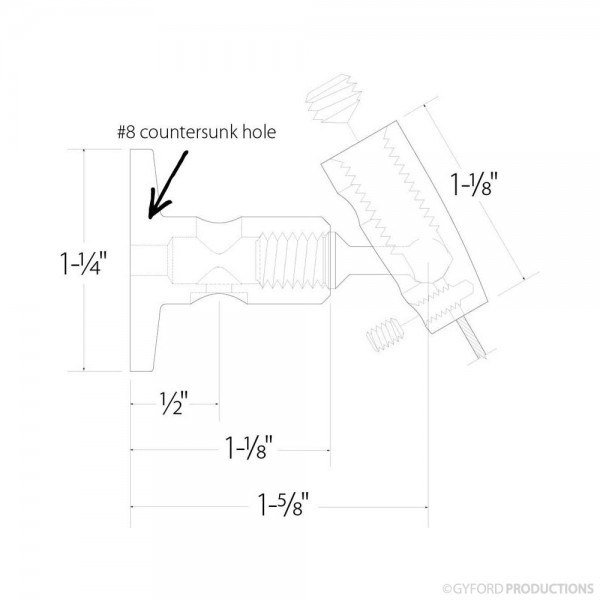

WL-A-42-LINE.jpg Line Drawing WL-A-42-LINE.jpg Line Drawing

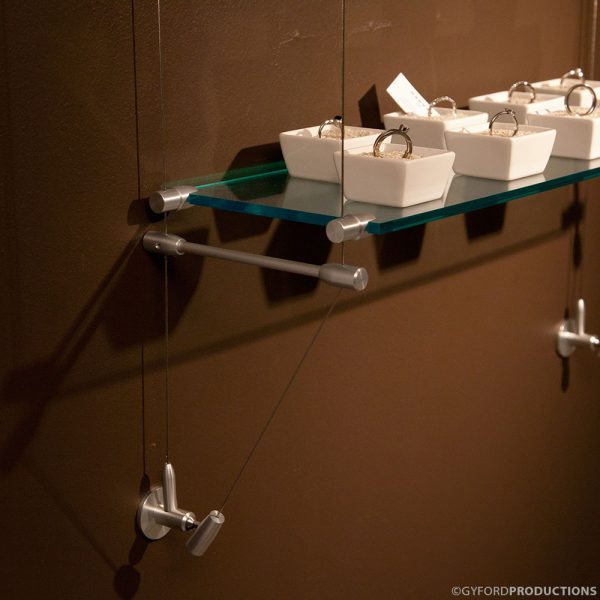

wl-a-42-app.jpg Application wl-a-42-app.jpg Application

WL Wire Wall Mount Top or Bottom

The WL-A42 angled wire wall mount is designed to hold wire parallel to the mounting surface or up to 40 degrees away from the surface. Our WL swaged wire can be purchased here and cut to your desired length at the time of installation. Mounting installation hardware for drywall is included in the assembly.

Mounting Tip: 8 Countersunk hole for installation hardware.

Note: Installation requires HD-PD2 ((2) long shank phillips screw insert bit) which can be added to your purchase here. Do not tighten set screw when used as top moint with WL-AWIRE-8 or 10.

Watch the how-to video below where our tech lead will teach you how to install the WL-A42.

Login or register now to see pricing or place an order.

SKU: WL-A42. Categories: , , .

Product Specifications

SKU:
WL-A42
(A) Diameter:
1-1/4"
(B) Length:
1-1/8"
Material:
Machined Aluminum
Use With:
WS-WIRE
(C) Wall to Wire:
1/2" (inside)
Wire Connection:
Top: Swaged | Bottom: Set Screw

Included Hardware

HD-FDA1, HD-PS2
WL-EBM, WL-BP, WL-SWT, HD-CP9, HD-FPT8

Recommended Applications

Top Wall Mount
